ใบงานที่ 7 Measure Distance with Arduino and Ultrasonic Sensor

ผู้จัดทำ

นาย กฤษณะ   รักธรรม       001

นาย สราวุธ     ชอบเพื่อน   021

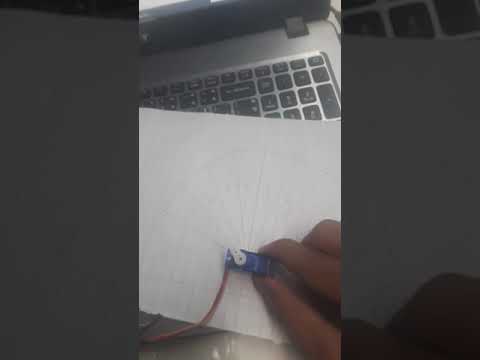

วีดีโอ

รูปวงจร

อุปกรณ์ที่ใช้

1. บอร์ด Arduino

2. หลอด LDE

3. Code

4. สาย USB

5. Resiston 220 R

6. สายไฟ

7. โปรแกรม Arduino

8. PC/Notebook

9. โปรแกรม Fritzing
10. หลอดไฟ

11. HC-SR04

12. Servo Motor

Code

#include <Servo.h>  //Load Servo Library

int trigPin=13; //Sensor Trip pin connected to Arduino pin 13

int echoPin=11;  //Sensor Echo pin connected to Arduino pin 11

int servoControlPin=6; //Servo control line is connected to pin 6

float pingTime;  //time for ping to travel from sensor to target and return

float targetDistance; //Distance to Target in inches

float speedOfSound=776.5; //Speed of sound in miles per hour when temp is 77 degrees.

float servoAngle; //Variable for the value we want to set servo to.

Servo myPointer;  //Create a servo object called myPointer

void setup() {

  // put your setup code here, to run once:

  Serial.begin(9600);

  pinMode(servoControlPin, OUTPUT);

  pinMode(trigPin, OUTPUT);

  pinMode(echoPin, INPUT);



  myPointer.attach(servoControlPin);  //Tell arduino where the servo is attached.

}

void loop() {

  // put your main code here, to run repeatedly:



  digitalWrite(trigPin, LOW); //Set trigger pin low

  delayMicroseconds(2000); //Let signal settle

  digitalWrite(trigPin, HIGH); //Set trigPin high

  delayMicroseconds(15); //Delay in high state

  digitalWrite(trigPin, LOW); //ping has now been sent

  delayMicroseconds(10); //Delay in low state



  pingTime = pulseIn(echoPin, HIGH);  //pingTime is presented in microceconds

  pingTime=pingTime/1000000; //convert pingTime to seconds by dividing by 1000000 (microseconds in a second)

  pingTime=pingTime/3600; //convert pingtime to hourse by dividing by 3600 (seconds in an hour)

  targetDistance= speedOfSound * pingTime;  //This will be in miles, since speed of sound was miles per hour

  targetDistance=targetDistance/2; //Remember ping travels to target and back from target, so you must divide by 2 for actual target distance.

  targetDistance= targetDistance*63360;    //Convert miles to inches by multipling by 63360 (inches per mile)

  Serial.print("The Distance to Target is: ");

  Serial.print(targetDistance);

  Serial.println(" cm");

  Serial.print("The Distance to Target is: ");

  Serial.print(targetDistance);

  Serial.println(" inches");



  servoAngle = (106./7.) * targetDistance + 37; //Calculate Servo Angle from targetDistance

  myPointer.write(servoAngle); //write servoAngle to the servo

  Serial.print("Angle ");

  Serial.println(servoAngle);

  delay(100); //delay tenth of a  second to slow things down a little.

}
